Real-Time Screen capturing/recording easily done with VirtualDub and VHScrCap

I’ve been looking for a way to capture my screen (not screen-shot it, but real-time capture) while on my OS (WinXP). I’ve found a lot solutions, but all of them involved shelling out money one way or another. Now why would I do that, when in the age of Open Source and Freeware there are free solutions for almost everything?

So I set out to look for an Open Source/Freeware solution, and I’ve found one! VirtualDub coupled with VH Screen Capture Driver works like a charm!

First you need to download and install VH Screen Capture Driver, then you start up VirtualDub.

In VirtualDub you do the following:

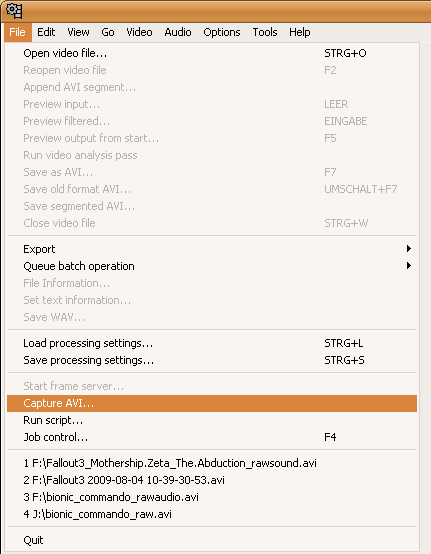

Step 1:  Switch to Capture Mode

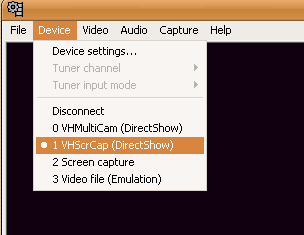

Step 2:  Select Capture Device

This is why you need to install VH Screen Capture Driver, before VirtualDub, otherwise you won’t have the Screen Capture “Driver”.

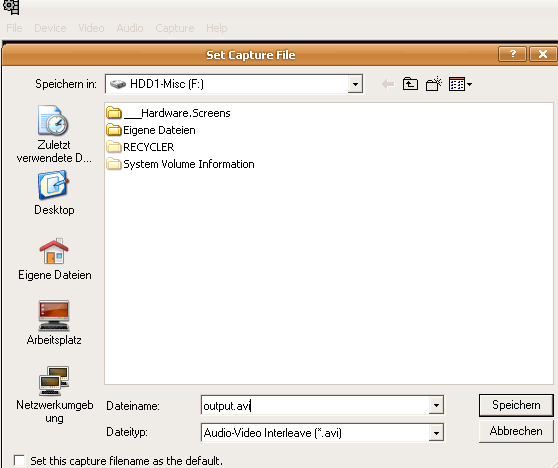

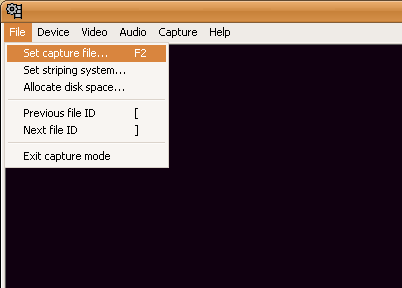

Step 3: Set your capture file

Choose its name and its location.

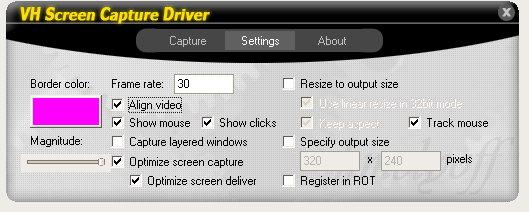

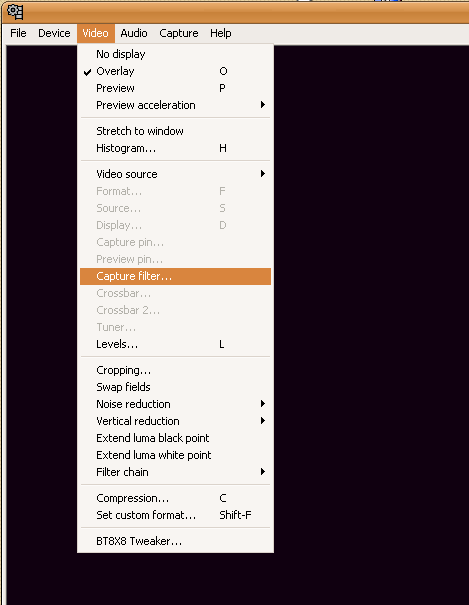

Step 4: Configure the capture devide / filter

You need to config VH Screen Capture Driver in order for it to run correctly.

Press “select” then put in your current desktop resolution in Width / Height. I’m running my PC in 1920 x 1200 resolution.

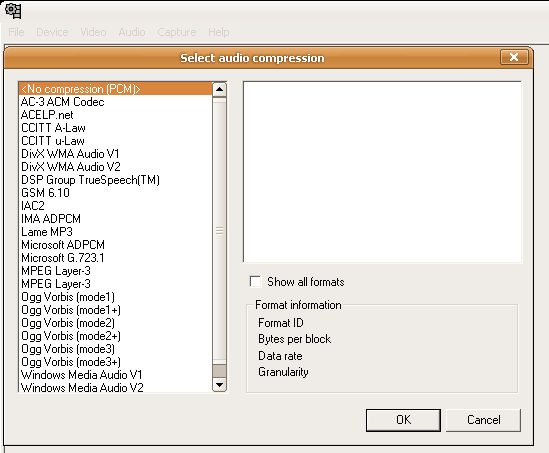

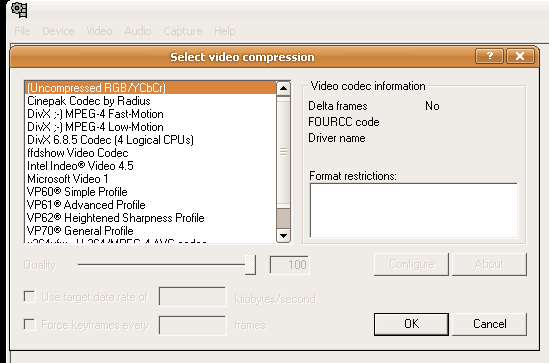

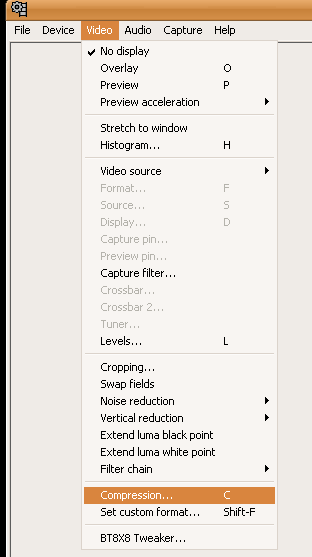

And that’s pretty much it. Didn’t cost a cent! You can record uncompressed audio/video and transcode it later:

or you can choose to expirement with those setting to your best liking! I personally record uncompressed and transcode it afterwards. Enjoy!

Edit: According to some users, this method does not work with Windows 7 and Windows Vista.

Addendum 18.08.2010: If you are a Windows 7 user, I suggest you use Fraps to record your desktop. Fraps has the ability to record your Aero desktop, which is awesome. No more hassle. Start Fraps, and start recording.
